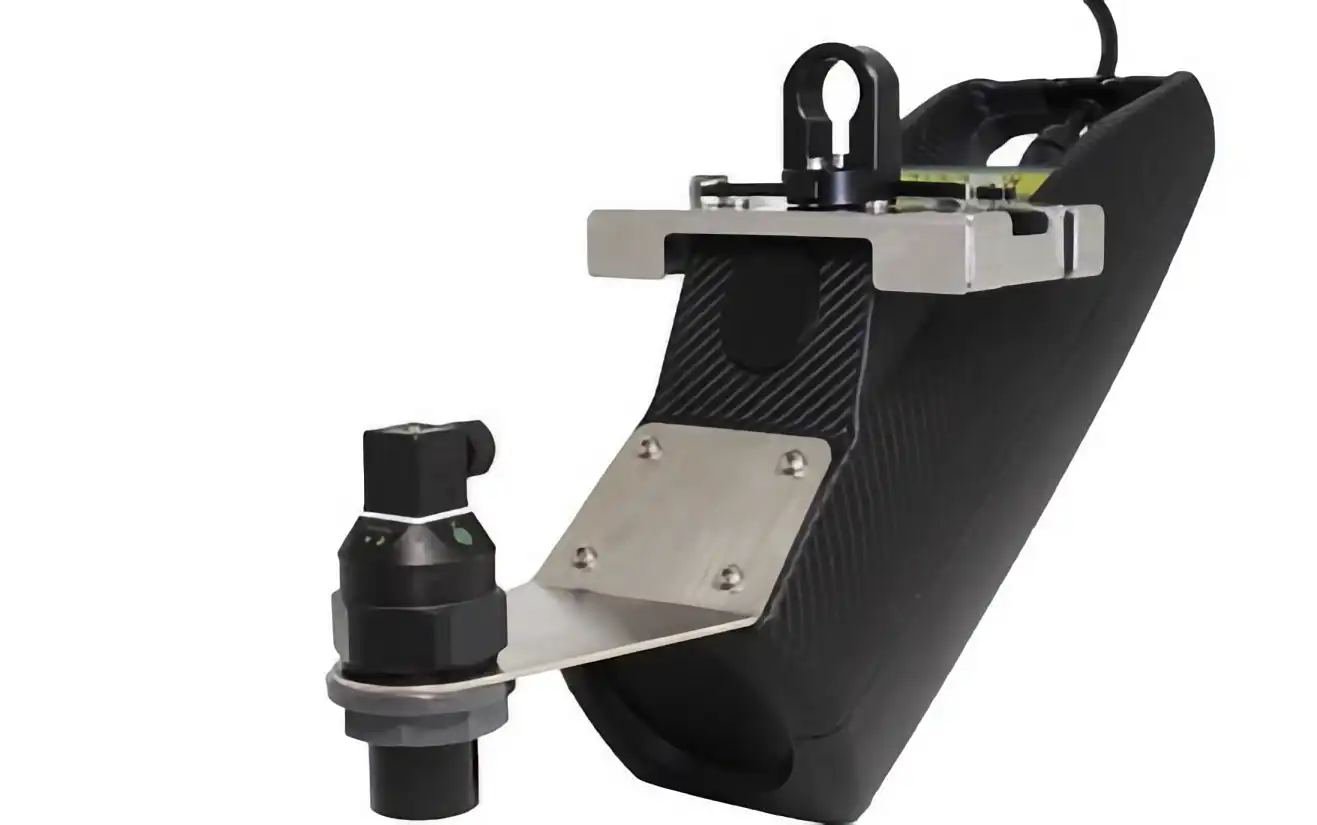

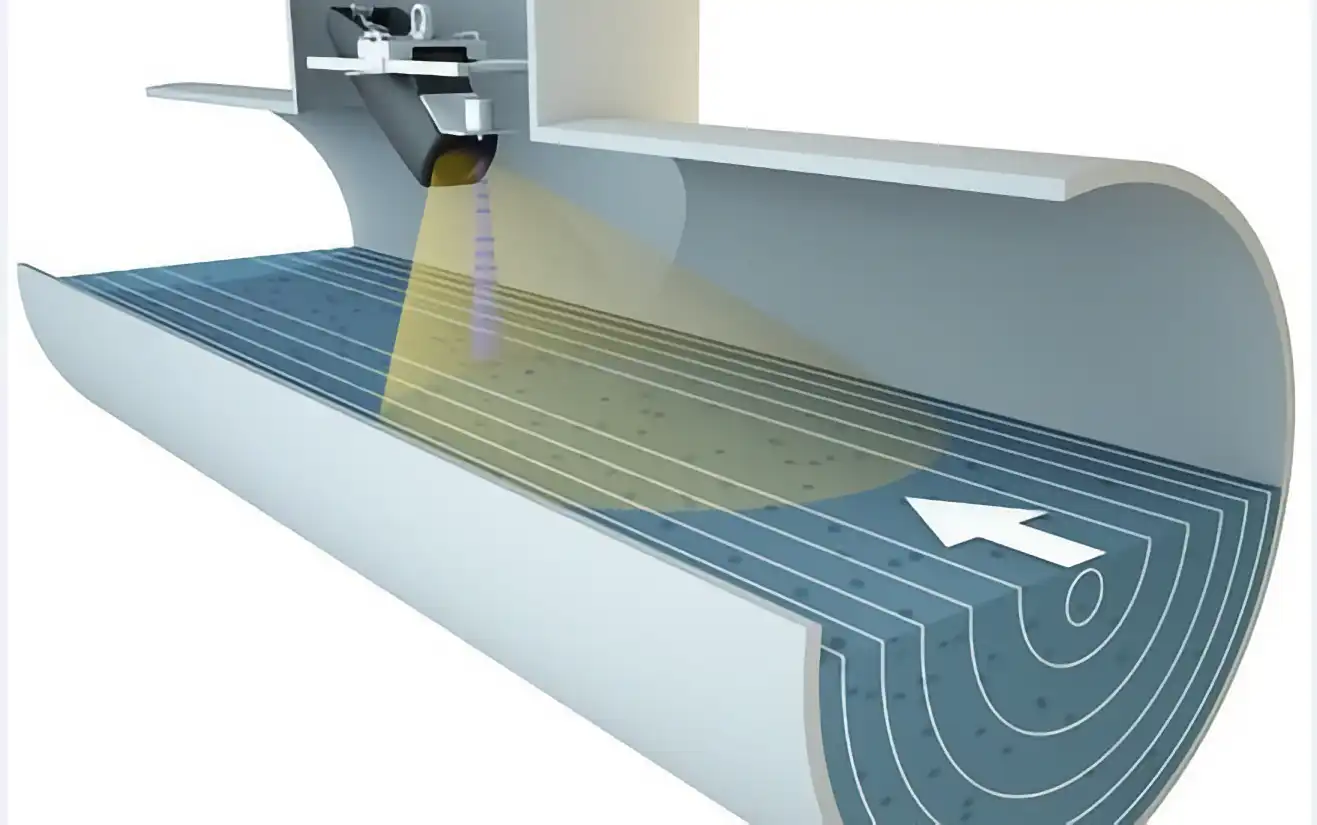

The Raven-Eye is mounted above the flow surface and measures the flow velocity using the doplar Radar technology. The system also measures the flow depth using a non contact Radar level sensor. The flow rate is calculated using the velocity and level data and these results are displayed and oytputted at the IFQ Monitior.

The Raven-Eye & IFQ Monitor system when combined with a Modbus RTU output can be connected to our myDatalog EasyIoTmini logger. This can send email alarms for system health, flow events such as, high flow, high level, power loss etc… it can also email periodic reports for flow data summary.

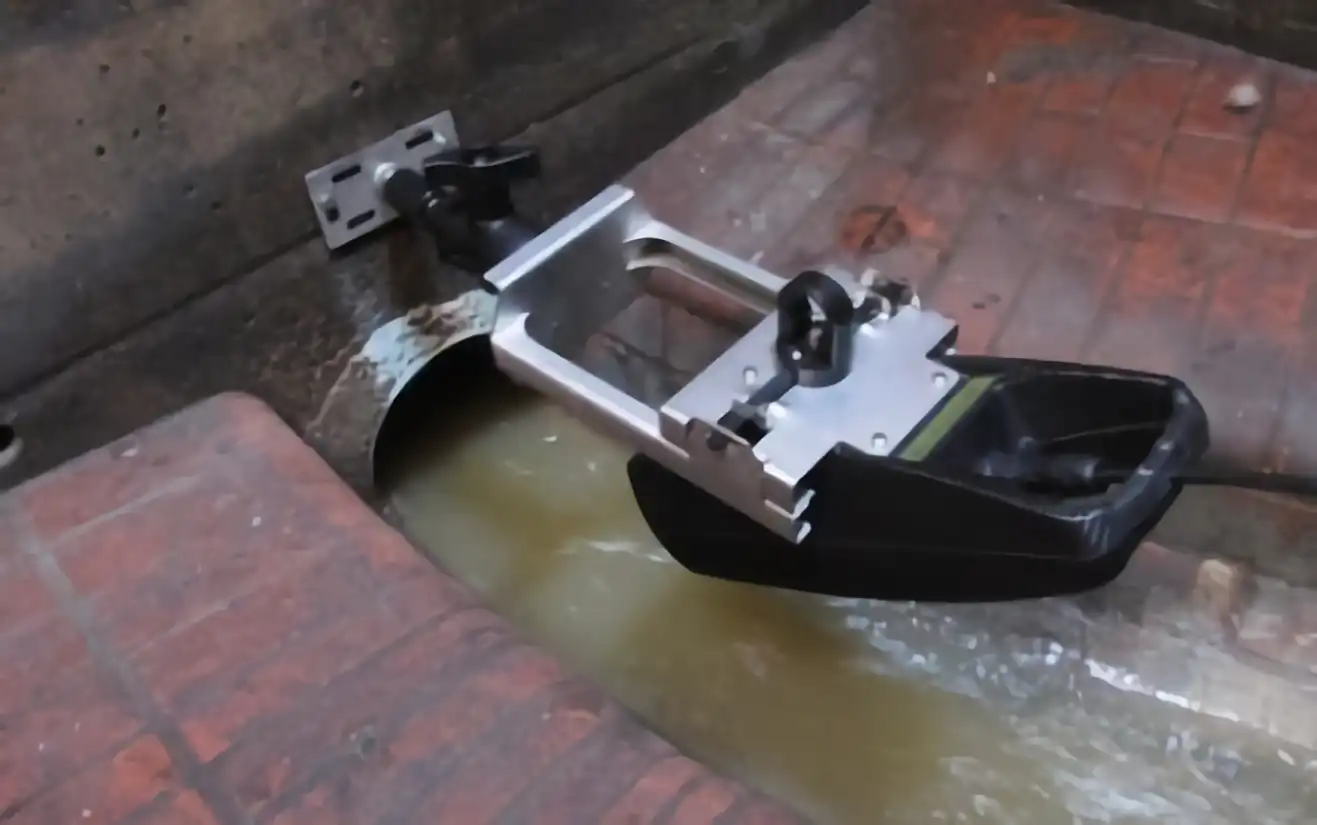

It can also be used for other applications such as effluent discharge. The Raven-Eye is ideal for retro-fitting into existing chambers without the need for civil works or flow shutdowns. Non-contact means, no routine cleaning needed, no ragging, no fouling.
